EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Nominal
size
Diameter
range
Head Ø
Head
height
Shaft
length
Shaft Ø
Blind
hole Ø
Material /
Color
Select
sample

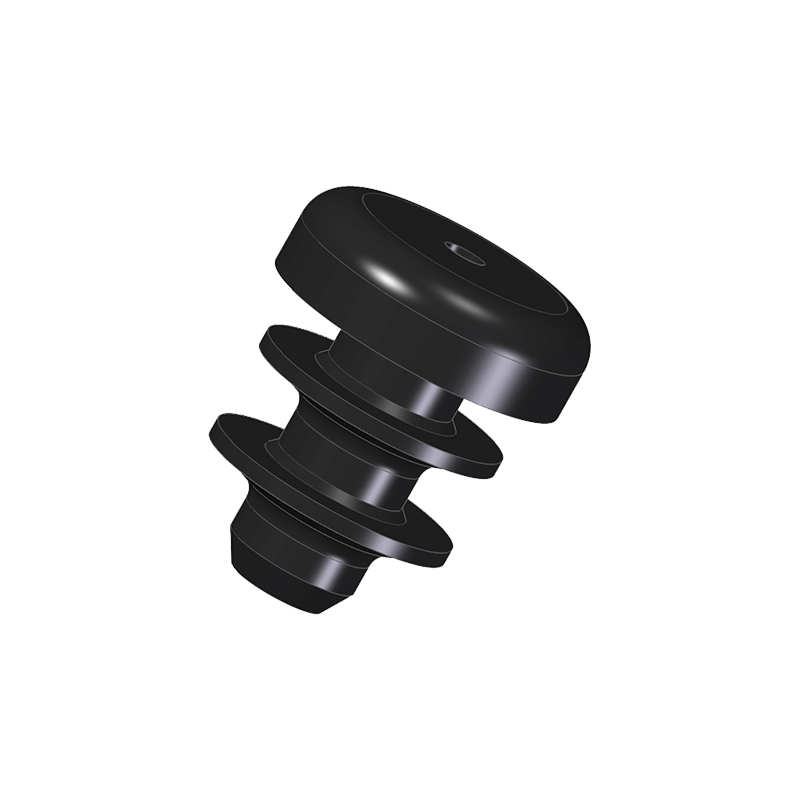

1611

M 5

4,0 - 5,5

8,0

2,5

7,00

3,50

1,50

EB

NB

SR

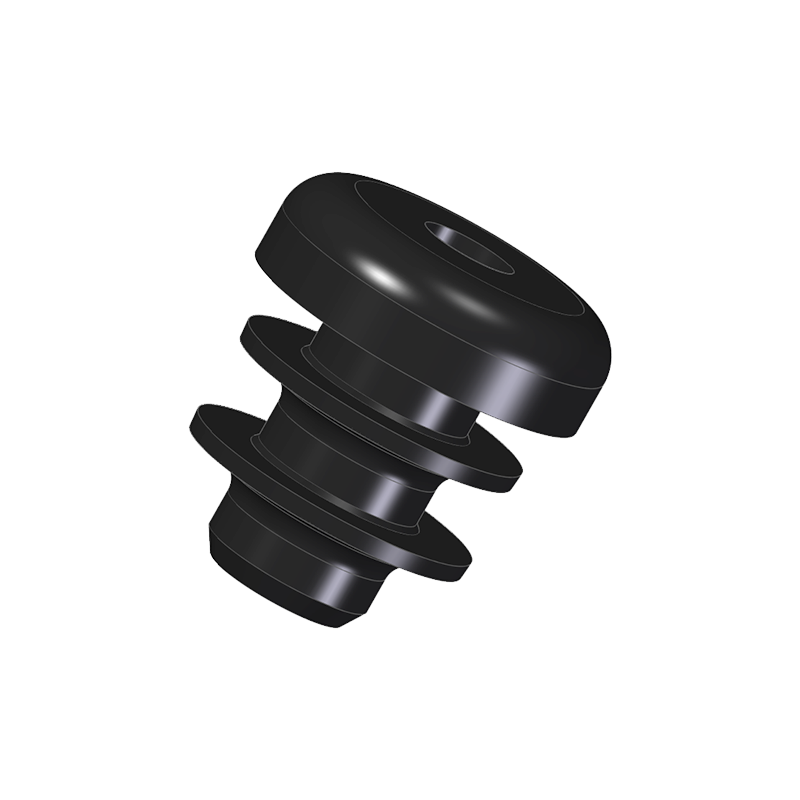

1612

M 6

5,5 - 7,0

9,0

2,8

7,00

4,50

1,50

EB

NB

SR

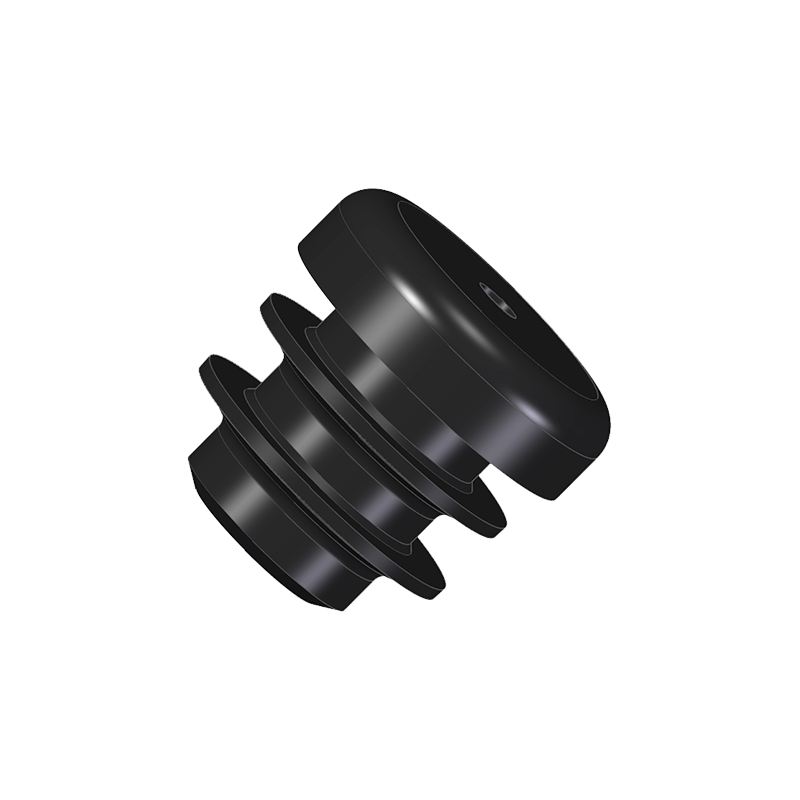

1613

M 8

7.0 - 8,5

10,5

3,0

7,00

6,50

1,70

EB

NB

SR

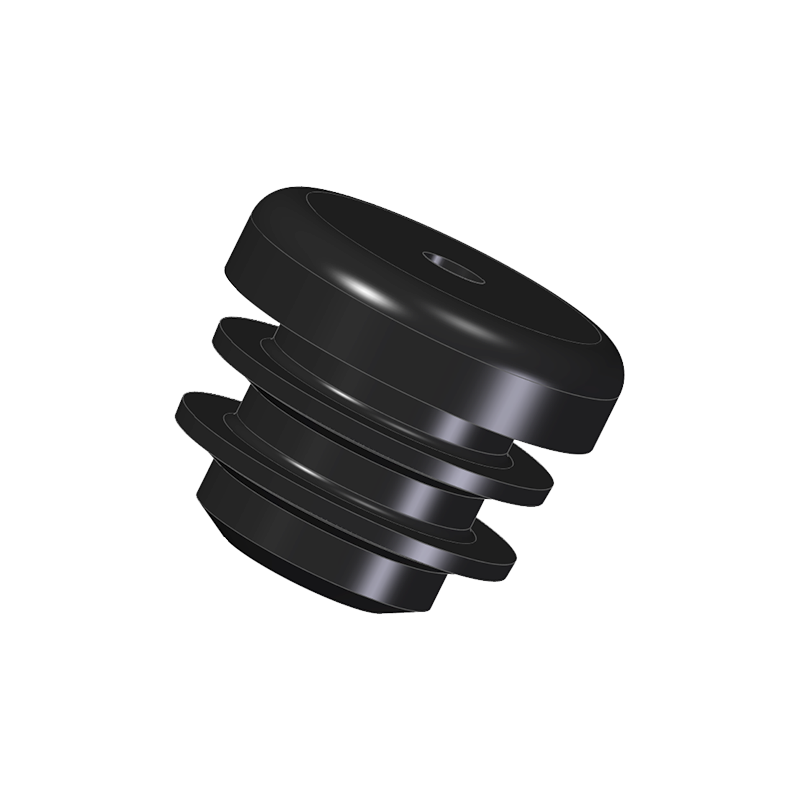

1614

M 10

8,5 - 10,0

12,0

3,0

7,00

7,50

2,00

EB

NB

SR

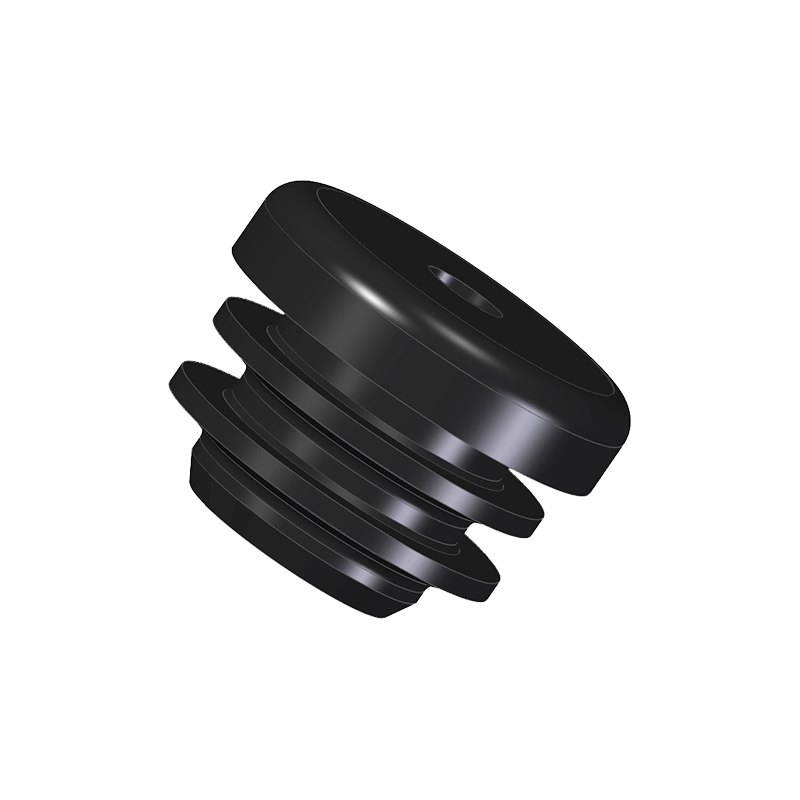

1615

M 12

10,0 - 12,0

14,0

3,0

7,00

8,80

3,00

EB

NB

SR

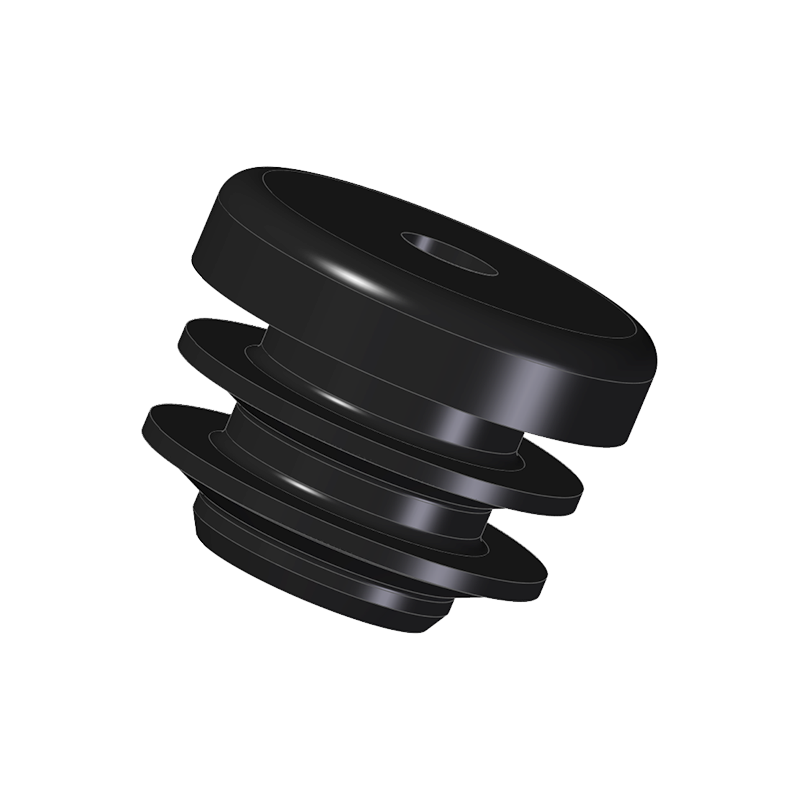

1616

M 16

12,0 - 16,0

18,0

4,0

9,80

10,60

4,00

EB

NB

SR

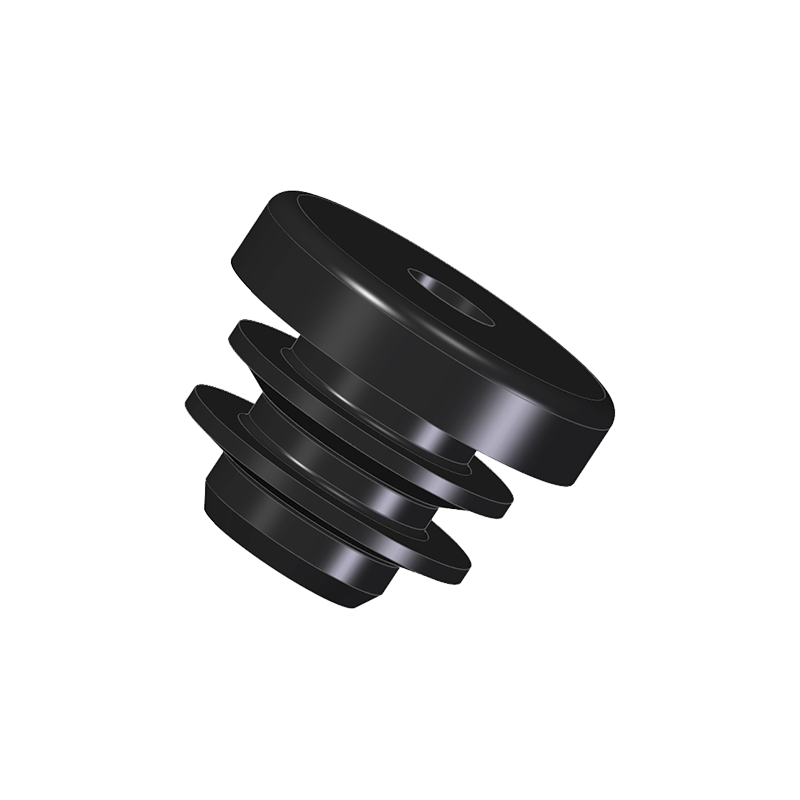

1617

M 20

16,0 - 20,0

25,0

5,5

13,70

12,90

6,30

EB

NB

SR

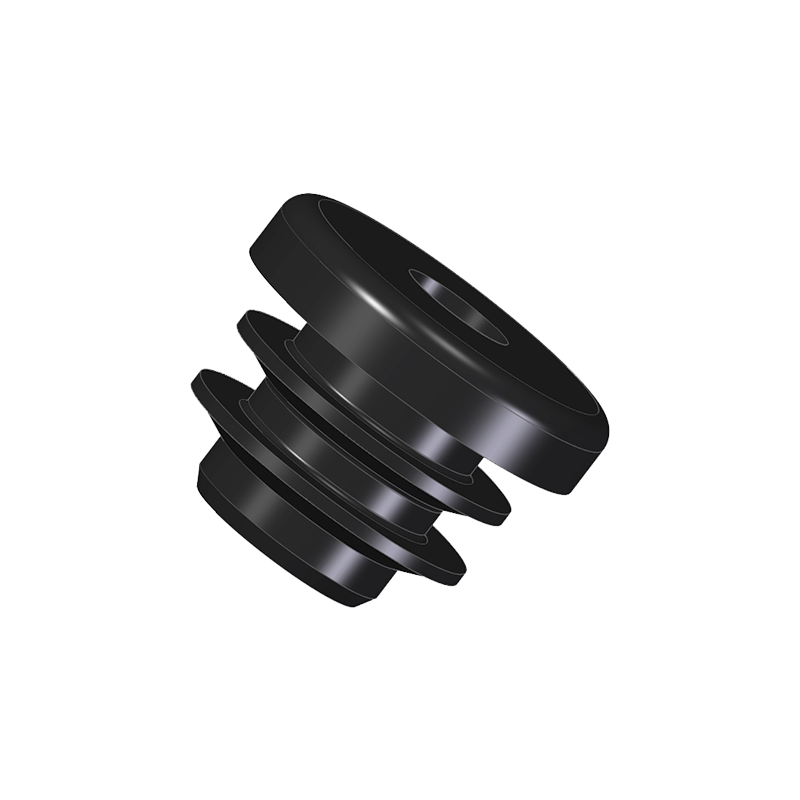

1618

M 24

20,0 - 24,0

30,0

6,0

17,00

16,70

9,30

EB

NB

SR

  • EB = EPDM, black
  • NB = NBR, black
  • SR = Silicon, red
