Bend relief grommets

Your selection
  • remove selection
  • 5,4
  • 6,8
  • 9,1
Your selection
  • remove selection
  • 3,5
  • 5,0
  • 6,8
Your selection
  • remove selection
  • 1,7
  • 3,0
  • 3,5
Your selection
  • remove selection
  • 1,5
  • 2,0
Your selection
  • remove selection
  • 8,6
  • 14,7
  • 18,0

Productfilter

previous next
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Total Ø
Hole Ø
Cable Ø
Collar
height
Gap
Total
height
Material /
Color
Select
sample

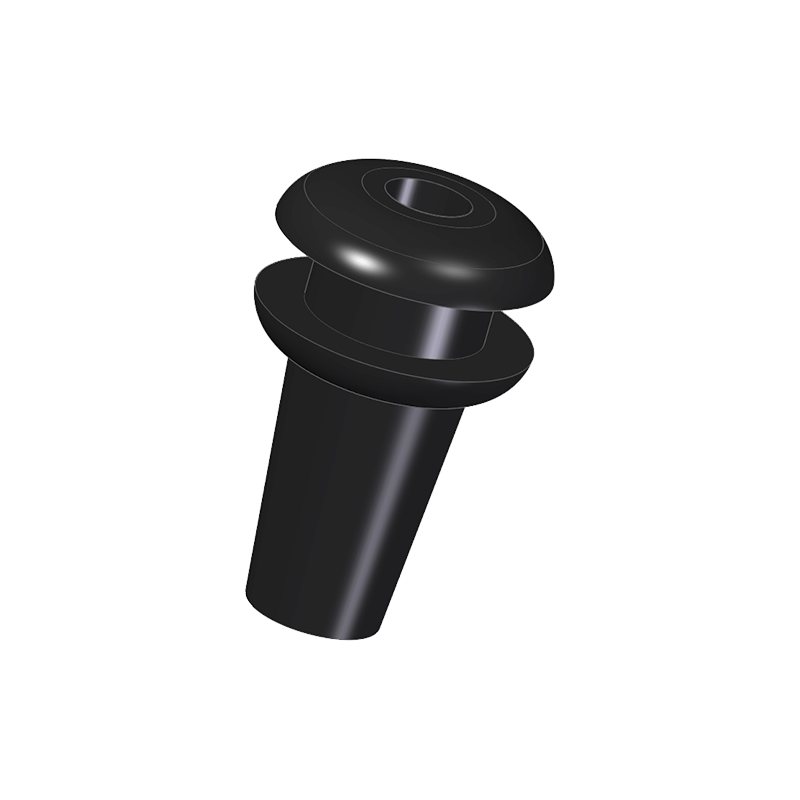

0970 5,4 3,5 1,7 1,0 1,5 8,6
EB

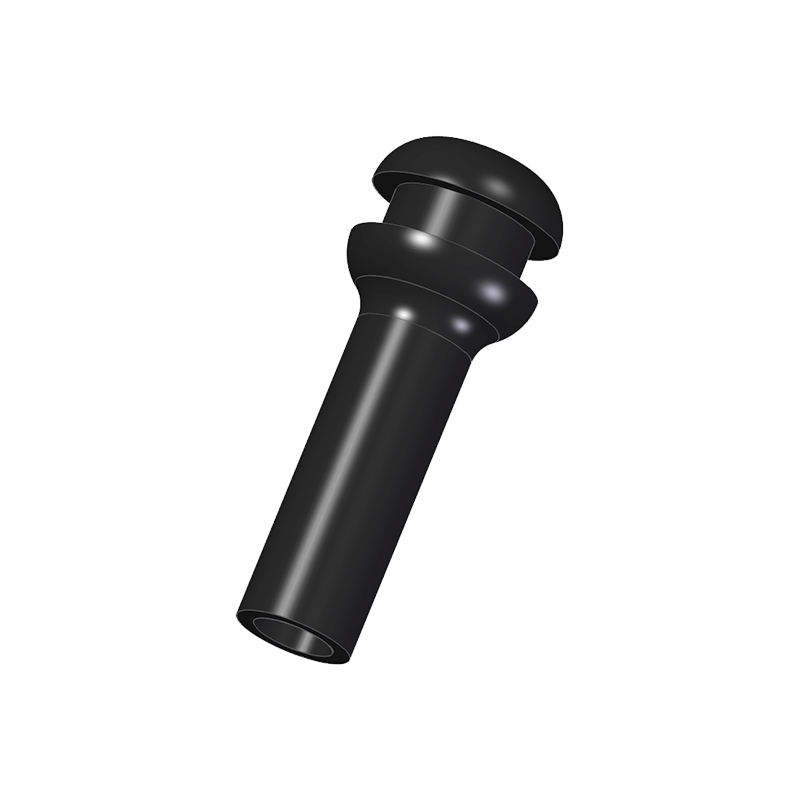

0998 6,8 5,0 3,0 2,1 2,0 18,0
EB

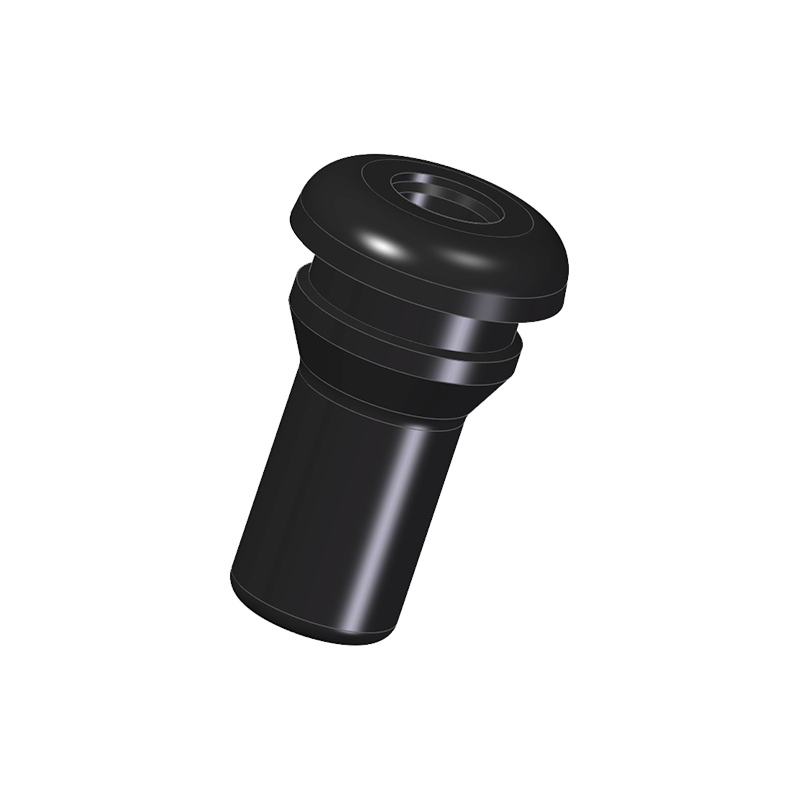

1066 9,1 6,8 3,5 2,1 1,5 14,7
EB

  • EB = EPDM, black
