EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Total Ø
Hole Ø
Cable Ø
Gap
Total
height
Head
height
Material /
Color
Select
sample

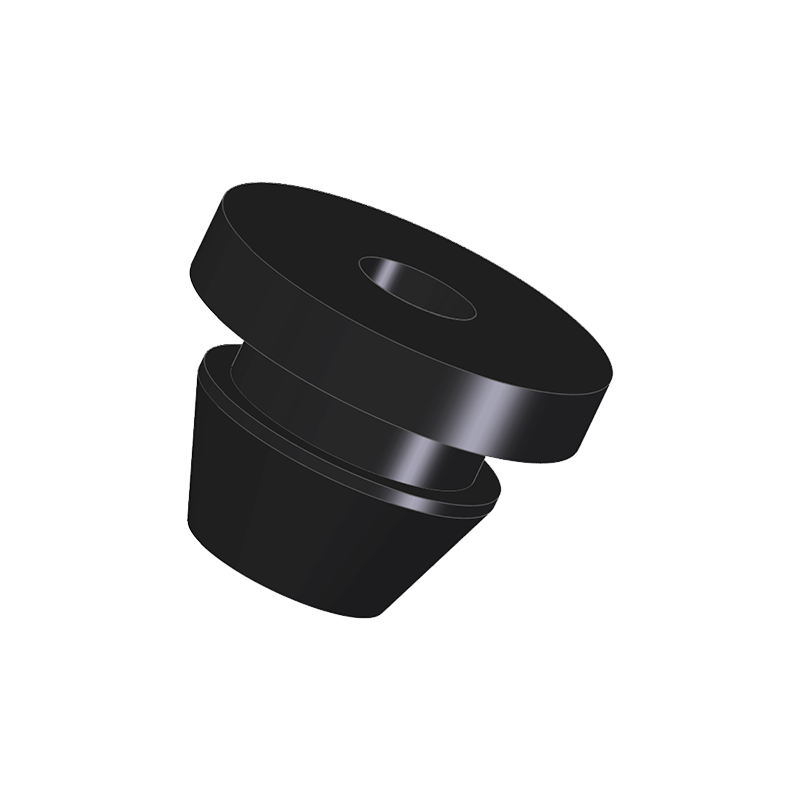

0996

8,0

5,0

2,4

1,5

6,0

1,5

EB

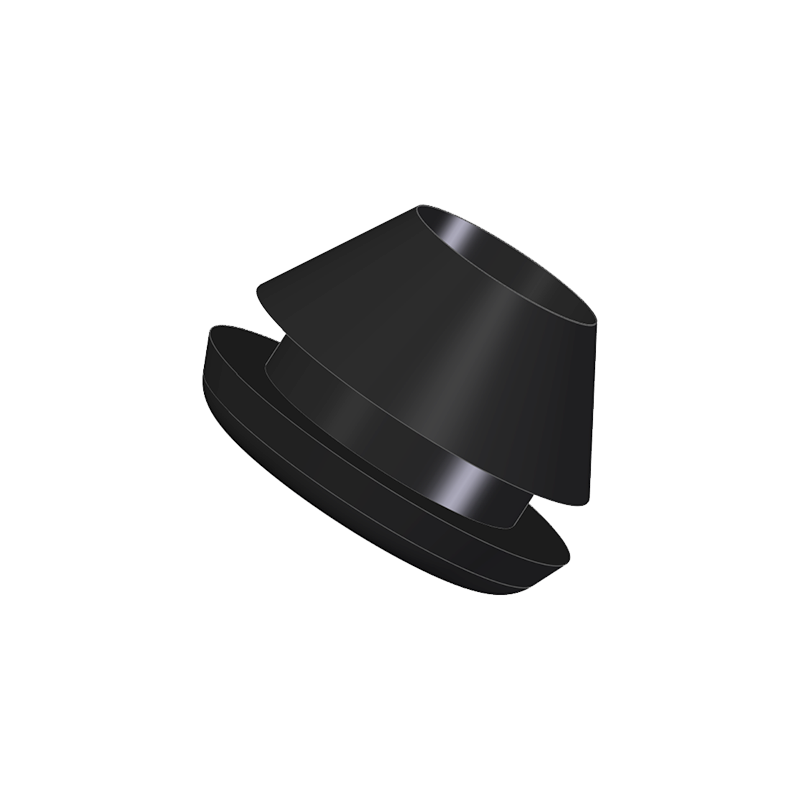

1002

10,0

7,0

5,0

1,5

6,7

1,5

EB

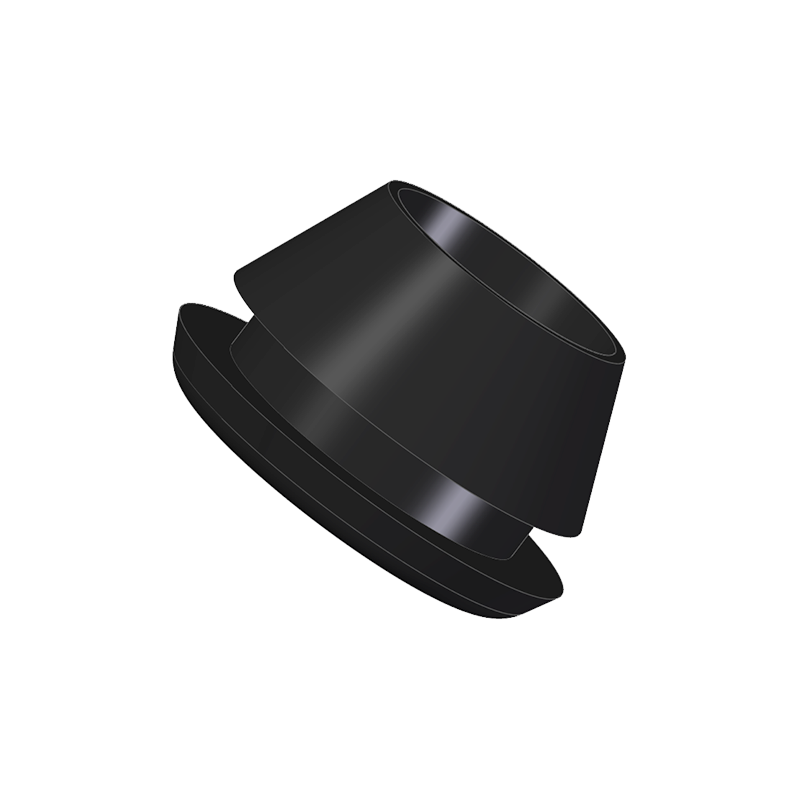

1003

11,7

8,5

6,5

1,5

7,0

1,5

EB

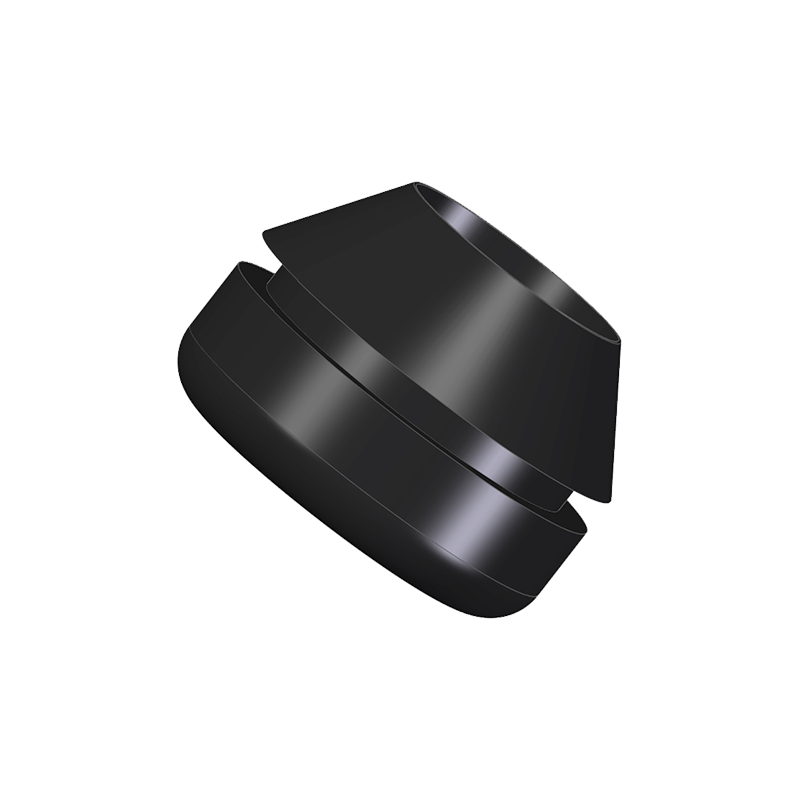

1089

11,7

9,8

6,8

1,0

8,2

3,5

EB

  • EB = EPDM, black
