Cable grommets U-shape

Your selection
  • remove selection
  • 13,8
  • 19,0
Your selection
  • remove selection
  • 13,8
  • 19,0
Your selection
  • remove selection
  • 10,5
  • 13,8
Your selection
  • remove selection
  • 7,0
  • 9,3
Your selection
  • remove selection
  • 12,0
  • 16,3
Your selection
  • remove selection
  • 1,5
  • 2,0

Productfilter

previous next
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Width
Height
Recess
wide
Recess
height
Clearance
Installation
depth
Material /
Color
Select
sample

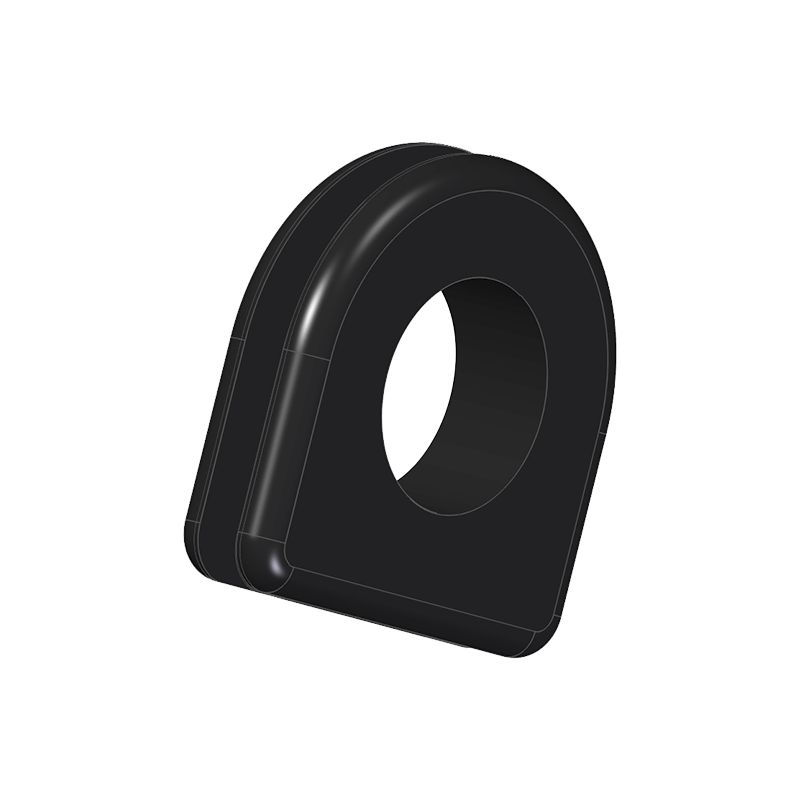

1059 13,8 13,8 10,5 7,0 12,0 1,5 2,6
EB

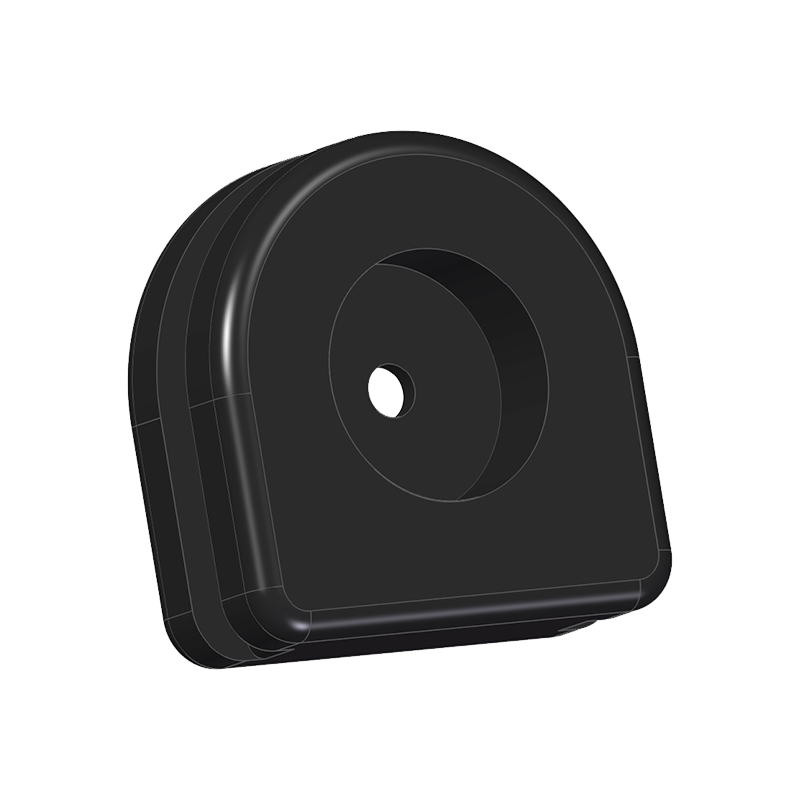

1048 13,8 13,8 10,5 7,0 12,0 1,5 2,6
EB

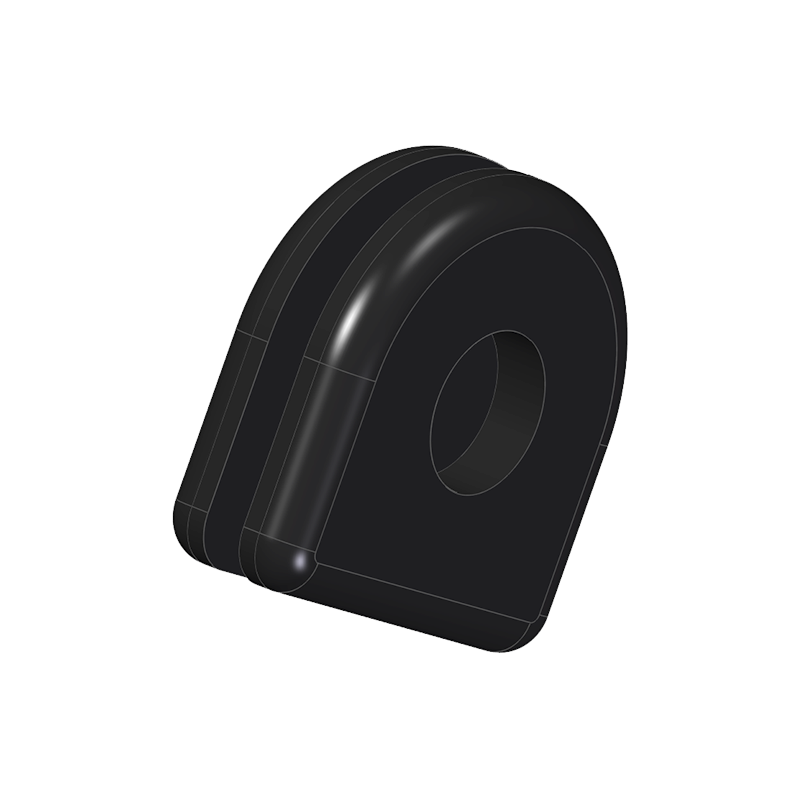

1033 19,0 19,0 13,8 9,3 16,3 2,0 4,5
EB

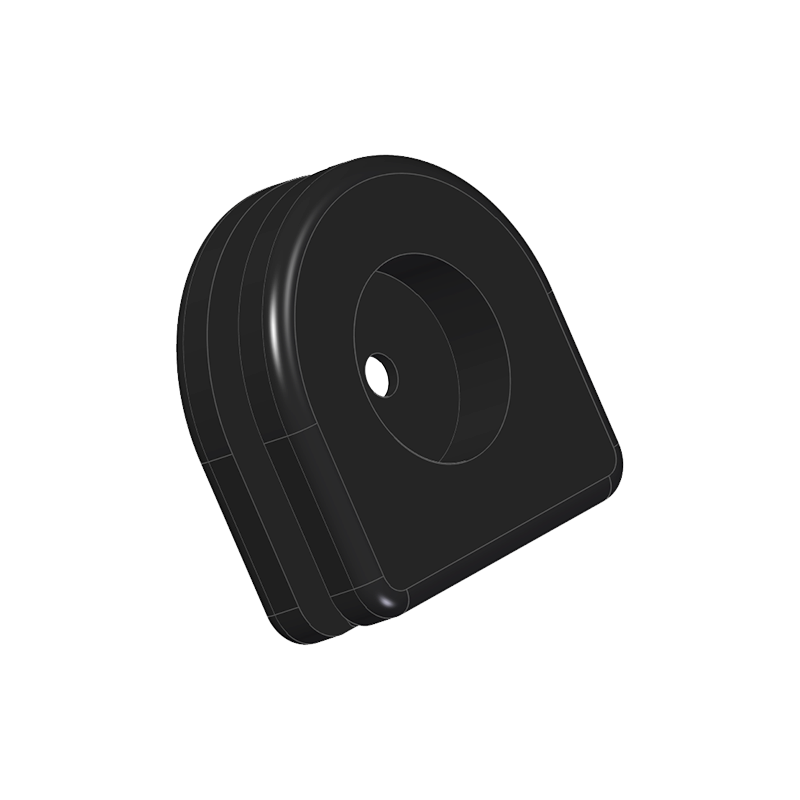

1049 19,0 19,0 13,8 9,3 16,3 2,0 4,5
EB

  • EB = EPDM, black
