Oblong grommets

Your selection
  • remove selection
  • 29,0 x 16,0
  • 35,0 x 17,0
  • 42,0 x 19,0
  • 58,0 x 24,0
Your selection
  • remove selection
  • 25,0 x 12,0
  • 30,0 x 12,0
  • 37,0 x 14,0
  • 50,0 x 16,0
Your selection
  • remove selection
  • 21,0 x 8,0
  • 26,6 x 8,3
  • 33,0 x 10,0
  • 46,0 x 12,0
Your selection
  • remove selection
  • 1 - 2,5
  • 2,8
Your selection
  • remove selection
  • 6,0
  • 6,3
  • 7,0
  • 9,0

Productfilter

previous next
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Total
dimensions
Installation
dimensions
Inner
dimensions
Gap
Total
height
Membrane
thickness
Material /
Color
Select
sample

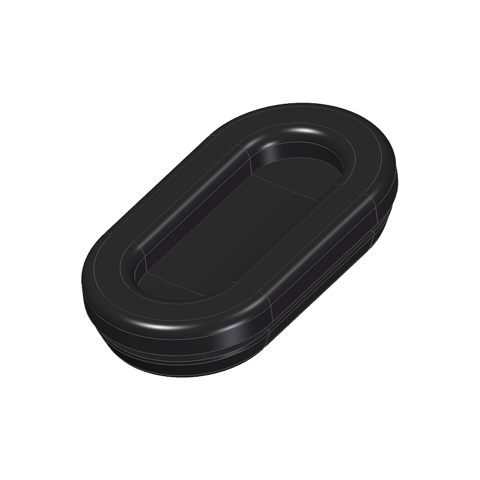

1097 29,0 x 16,0 25,0 x 12,0 21,0 x 8,0 1 - 2,5 6,0 0,8
EB

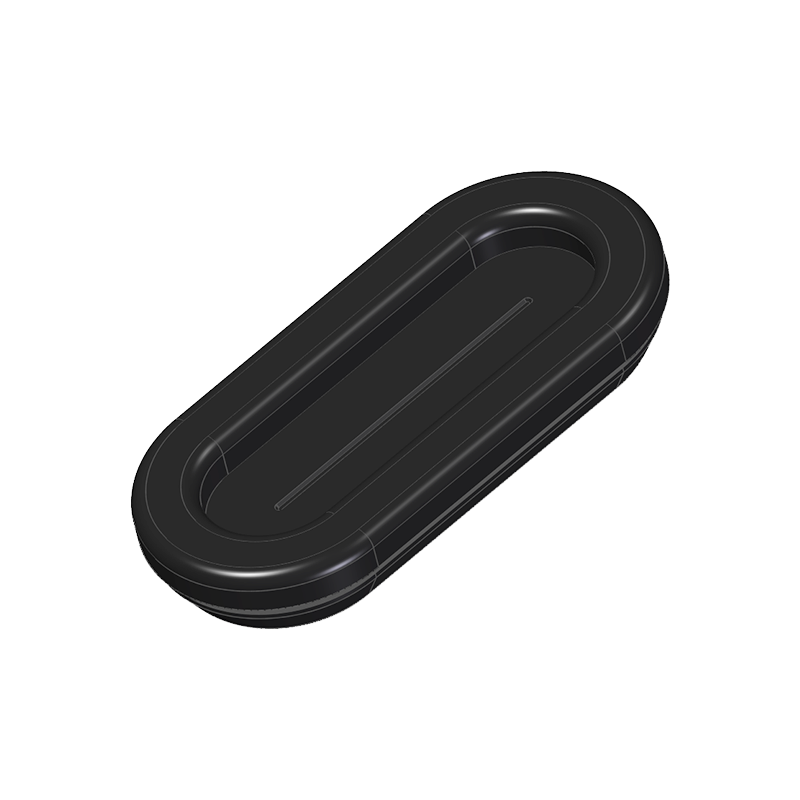

1098 42,0 x 19,0 37,0 x 14,0 33,0 x 10,0 1 - 2,5 7,0 0,8
EB

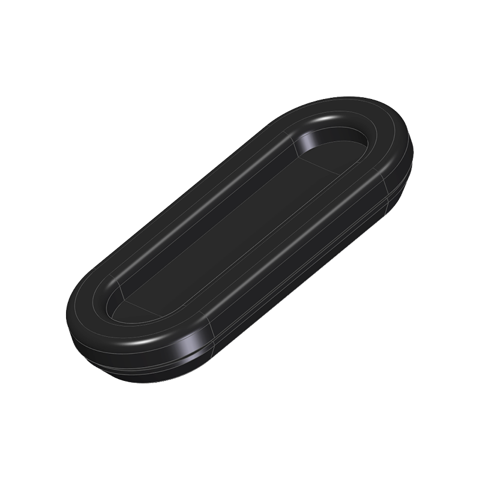

1099 58,0 x 24,0 50,0 x 16,0 46,0 x 12,0 1 - 2,5 9,0 1,0
EB

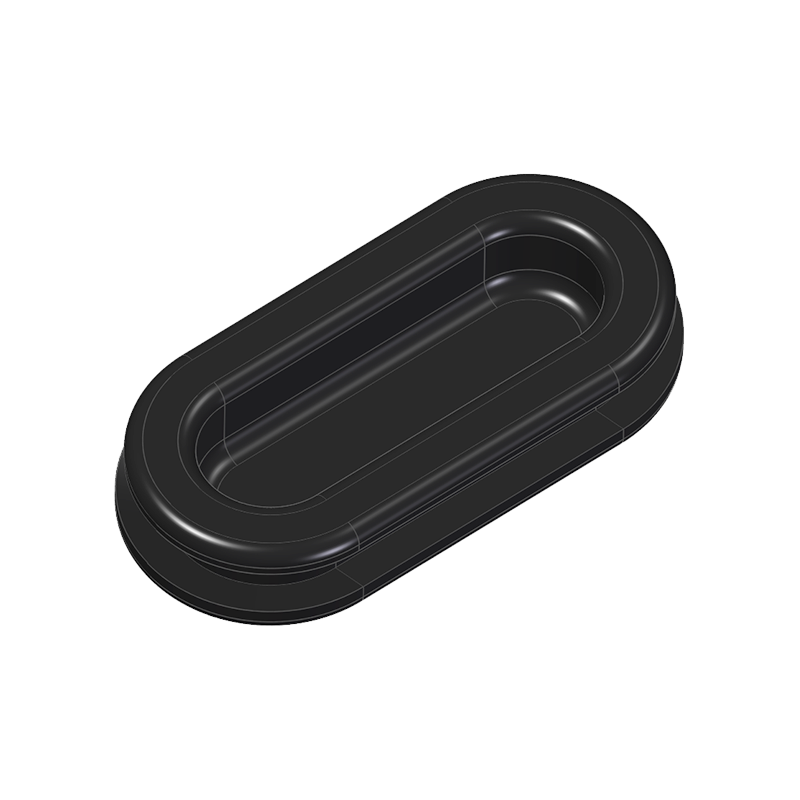

1028 35,0 x 17,0 30,0 x 12,0 26,6 x 8,3 2,8 6,3 1,0
EB

  • EB = EPDM, black
